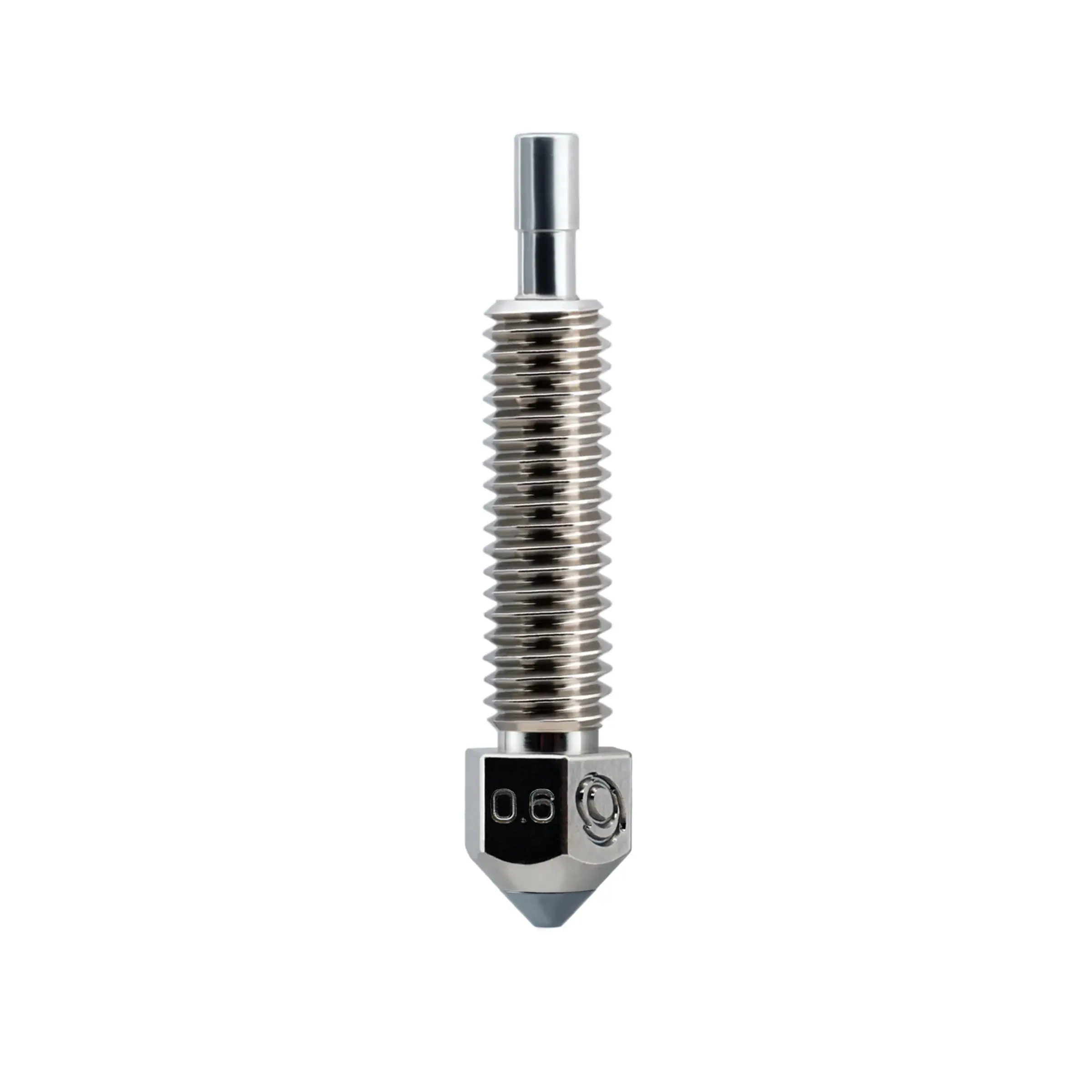

Microswiss and Bondtech have partnered to bring the High Flow, Hardened Tip CM2™ nozzle to the FlowTech ecosystem. This new nozzle incorporates proprietary CHT technology, specifically designed to enhance the filament flow rate. Core of the nozzle is made of high-temperature Copper Chromium Zirconium and plated with an Electroless Nickel Plating. This special alloy retains its strength at much higher temperatures compared to a regular copper alloy. The tip of the nozzle is made of M2 Hardened High Speed Steel and coated with a special  WS2 nonstick nano coating.

CHT - CM2™ Nozzle Features:

• Copper Chromium Zirconium body


  • Plated with an Electroless Nickel Plating


• M2 Hardened High Speed Steel insert
  • Plated with an Electroless Nickel Plating
  • Coated with nonstick nano WS2 coating.
  • Coefficient of friction: 0.035
  • Heat-treated hardness:  68 HRC


• High Flow CHT Technology
  • The FlowTech nozzle, equipped with Bondtech CHT technology, can achieve a maximum volumetric flow rate of up to 50 mm³/sec

  • More uniform layer deposition is achieved by splitting the filament  flow into multiple chambers as it passes through the melt zone. This reduces gaps and weak points between layers


• Orifice size available: .4mm, .6mm, .8mm, 1.0mm


• Limited lifetime warranty against wear
  Warranty

Made in Sweden by Bondtech
Assembled in USA by Microswiss
