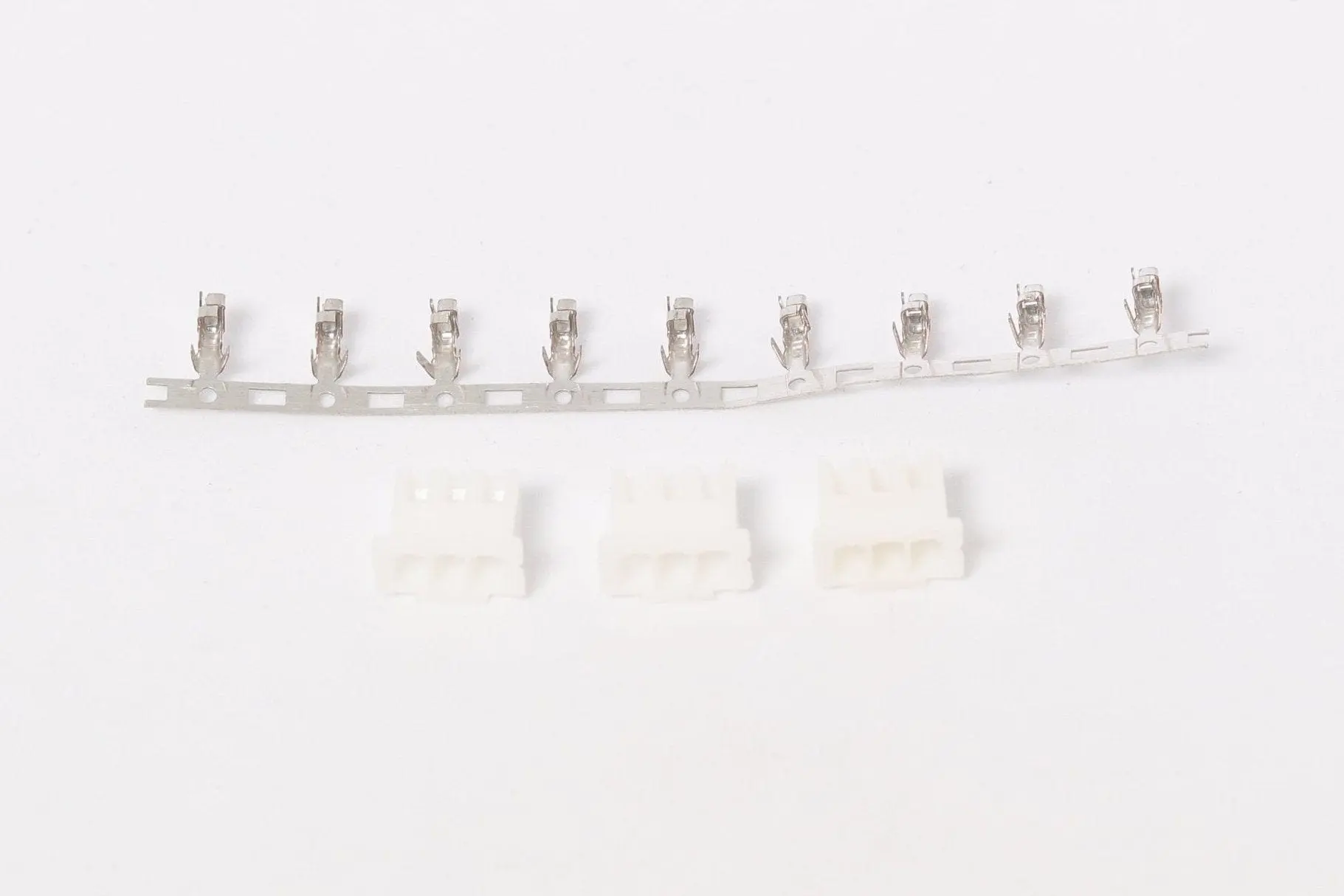

The 3-Pin JST-XH Connector (5-pack) is a set of electrical connectors designed for secure and reliable wire-to-board connections in various electronic applications. Each pack includes five 3-pin connectors, commonly utilized in 3D printers, battery balancers, and other electronic devices.

Key Features:

Applications: Commonly used for connecting 3-wire end stop wiring to controller boards in 3D printers and other electronic devices.

Assembly Instructions:

To assemble the JST-XH connectors:

1. Wire Preparation: Strip the insulation from the wire ends.

2. Crimping: Attach the crimp pins to each wire lead using a suitable crimping tool.

3. Insertion: Orient the pin with the latch facing the opening of the connector housing and insert until it locks into place.
